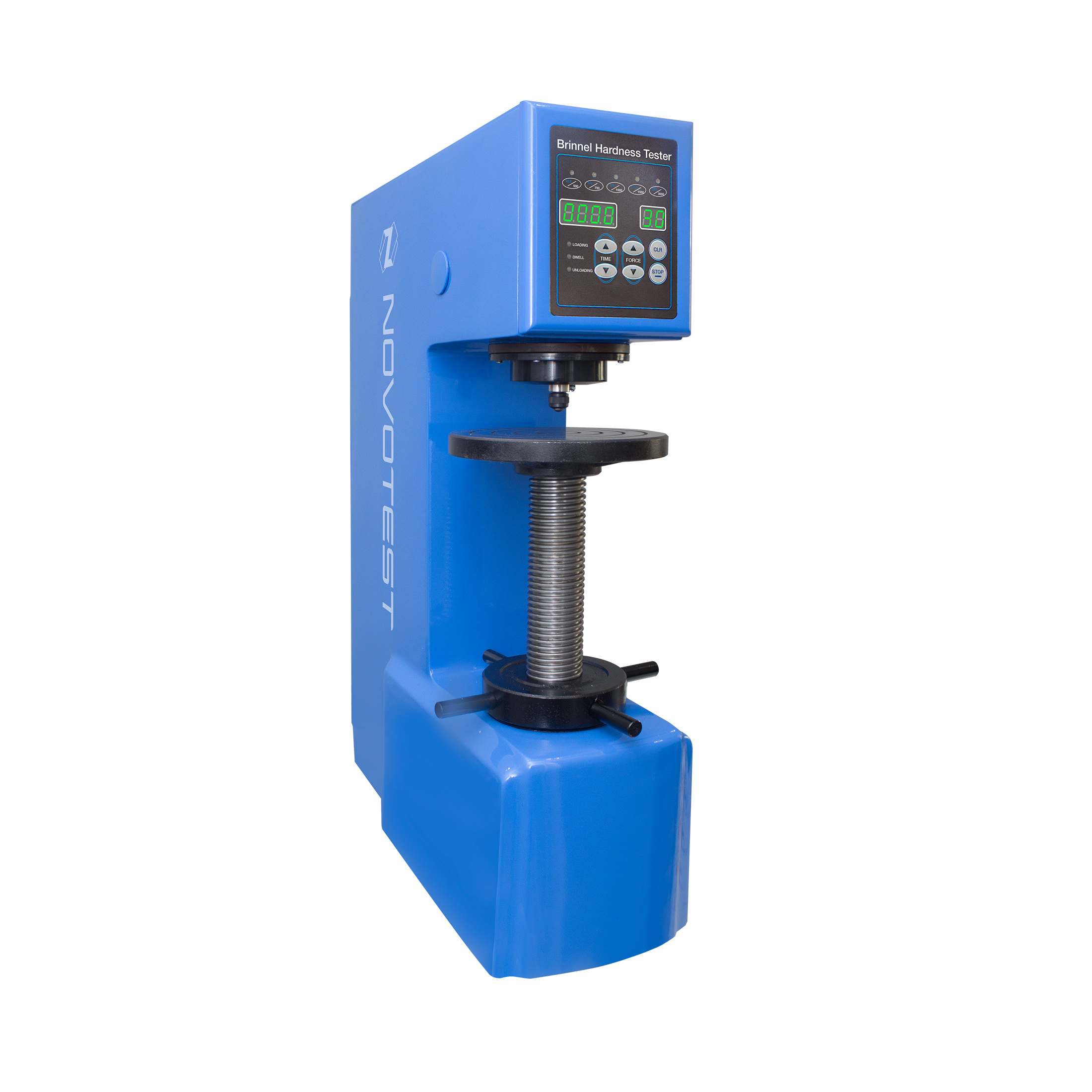

Brinell Hardness Tester | TS-B-C1

Description Brinell Hardness Tester | TS-B-C1 Brinell scales HBW 2.5/62.5 HBW 2.5/187.5 HBW 5/62.5 HBW 5/125 HBW 5/250 HBW 5/750 HBW 10/100 HBW 10/250 HBW 10/500 HBW 10/1000 HBW 10/1500 HBW 10/3000 Conversion to other scales Manual conversion by the conversion tables for Rockwell and Vickers scales Test forces 62.5kgf (612.9N) 100kgf (980.7N) 125kgf (1226N) 187.5kgf (1839N) 250kgf (2452N) 500kgf (4903N) 750kgf (7355N) 1000kgf (9807N) 1500kgf (14710N) 3000kgf (29420N) Measurement accuracy ≤125 HB: ±3,0 5 < HBW ≤ 225: ±2.5 %>225: ±2.0 % Dwell time 5 – 60 s, adjustable Testing materials Steel and cast iron Сoarse-grain metal materials (casted parts, non-ferrous metals and alloys, copper and copper alloys) Tempered steels, hardened and tempered steels Soft metals (pure aluminium, lead, tin) and others Hard plastics and bakelite Size and requirements to test objects Thick and small and large objects with rough surfaces such as rusty and roughly machined parts Hardness test range 8 ~ 650 HBW Microscope magnification 20x Microscope resolution 0.005 mm Maximum height of the test object 220 mm (optionally 500 mm) Maximum depth of the test object 135 mm Data output Digital display RS-232 Printer (optional) Type Digital, electronic The power source and the voltage AC 220V ± 5%, 50-60 Hz Dimensions 650 x 500 x 850 mm Net weight ~130 kg Gross weight ~140 kg Colour Blue Brinell Hardness Tester | TS-B-C1
