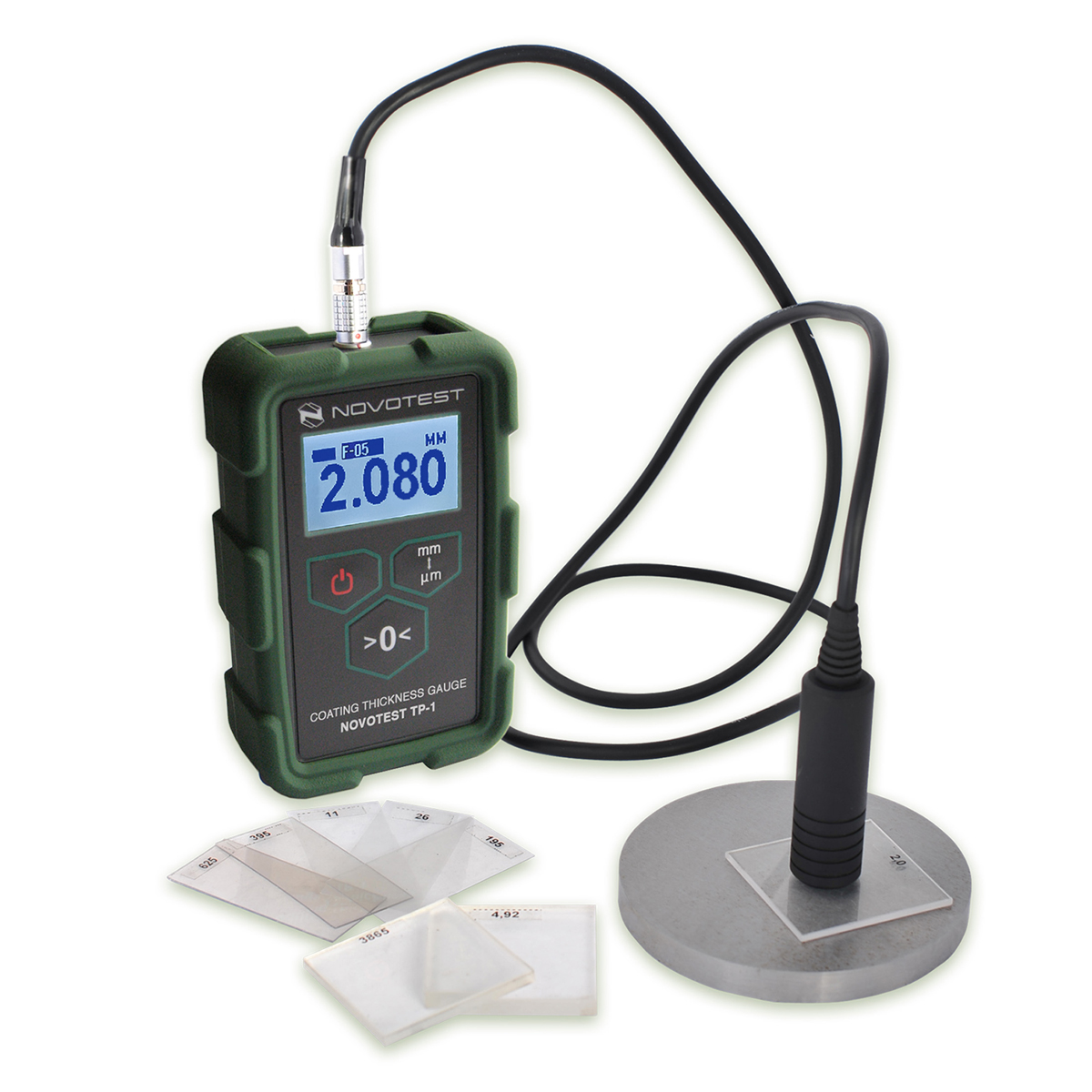

Coating Thickness Gauge | TP-1M

Description Coating Thickness Gauge | TP-1M Technical Specification Thickness measurement range (depends on probe type) 0 µm – 60 mm Dimensions 122 x 65 x 23 mm Operating temperature range -20 – 40 ° C Batteries 2 AA Type of connectors of probes Lemo Storage of measurement results and PC software (optional) 256 Standards AS 2331.1.4 | AS 3894.3-B | AS/NZS 1580.108.1 | ASTM B 499 |ASTM D 7091 | ASTM E 376 | ASTM G 12 |  BS 5599 | EN 13523-1 | IMO MSC.215(82) |IMO MSC.244 (83) |ISO 1461 | ISO 19840 | ISO 2063 | ISO 2178 | ISO 2360 | ISO 2808-7C | ISO 2808-7D | ISO 2808-12 | NF T30-124 | SSPC PA 2 | US Navy PPI 63101-000 | US Navy NSI 009-32 |ASTM D 1186-B | ASTM D 1400 | BS 3900-C5-6B | BS 3900-C5-6A | BS 5411-11 | BS 5411-3 | DIN 50981 | DIN 50984 | ECCA T1 | ISO 2808-6A | ISO 2808-6B | SS 184159. Time of continuous work hours not less: 20 h Weight of electronic unit with batteries no more: 0.2 kg Specifications of probes for Coating Thickness Gauge TP-1M Coatings on steel (dielectric and conductive coatings on ferromagnetic metals and alloys) Type of probe Coating thickness measurement range Measurement accuracy Dimensions of the probe, mm Purpose probe F-0,3 0-300 µm ±(0,03h 0,001) mm Ø5×40 Measurement of paint and varnish and galvanic coatings probe F-0,5 0-500 µm ±(0,03h 0,001) mm Ø 7×14 Measurement of paint and varnish and galvanic coatings probe F-2 0-2000 µm ±(0,03h 0,002) mm Ø 9×35 Measurement of paint and varnish coatings probe F-5 0-5000 µm ±(0,03h 0,002) mm Ø 18×35 Measurement of paint and varnish and mastic coatings Coating on the non-magnetic metals (Any (dielectric or metal) coatings on non-ferrous metals and alloys) probe NF-2 0-2000 µm ±(0,03h 0,002) mm Ø 14×53 Measurement of anodic-oxide films and paint coatings Thick coatings on metals (dielectric coatings on metals) probe M-12 0-12 mm ±(0,03h 0,01) mm Ø 18×55 Measurement of mastic coatings probe M-30 1-30 mm ±(0,03h 0,02) mm Ø 24×51 Measurement of mastic coatings probe M-60 1-60 mm ±(0,03h 0,03) mm Ø 40×76 Measurement of mastic coatings Measurement of surface roughness, Rz (After abrasive blasting pre-painting work) probe DSH 2-360 µm ±(0,03h 0,002) mm Ø 20×50 Measurement of surface roughness after sand and shot blasting Temperature, humidity, and dew point probe DT -50  125 ° C / – 1 ° C Ø 12×107 Temperature measurement probe DTVR Humidity: 0 ? 100%Temperature: -50 ? 125 °CDew point: -15 ? 40 °C ± 5%± 1 ° C± 2 ° C Ø 50×111 Measurement of temperature, humidity and dew point Coating Thickness Gauge | TP-1M
