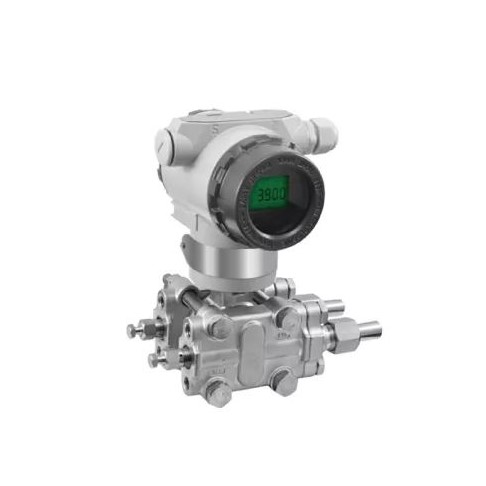

Digital Differential Pressure Transmitter | P064

Description Digital Differential Pressure Transmitter | P064 Specification Input Pressure type Differential pressure Measuring range 0.1 … 25 bar Output Output 4 … 20 mA HART® (10.5 … 36 V，typical24 V) Accuracy Measuring range: ≦0.06 bar 0.2% Measuring range : 0.06 bar … 0.4 bar 0.1% Measuring range: ≧0.4 bar 0.075% Electrical connection M20x1.5 Environmental Zero Temp. coefficient ±0.25%F.S./55℃ Full scale Temp. effect ±0.5%F.S./55℃ Operating environment Temp. -30℃ … 80℃ LCD : -30℃ … 70℃ Medium Temp.  -30℃ … 70℃ Storage Temp. -40℃ … 85℃ Installation Fixed frame Tube bending bracket / Plate bending bracket / Tube mounting bracket Process connection Outside thread：M20x1.5 with welded pipe、G 1/2 with welded pipe、 G 1/4、NPT 1/2. Inside thread：NPT 1/4、NPT 1/2 Protection Insulation resistance ≧100 MΩ/DC 500 V(200 MΩ / DC 250 V) IP rating IP65 Static pressure range 70 bar、250 bar、400 bar Overvoltage limit 160 bar Long-term stability ±0.2%F.S./year Material Diaphragm material 316L Exhaust / Drain valve 316 Stainless steel O-ring Nitrile Butadiene Rubber(NBR)(Contact measuring medium) Filling oil Silicon oil Flange and fittings 304 Stainless steel Housing material Die-cast aluminum epoxy coating Weight 3.5 kg(without accessories) Digital Differential Pressure Transmitter | P064
